Polydrain Catch Basin

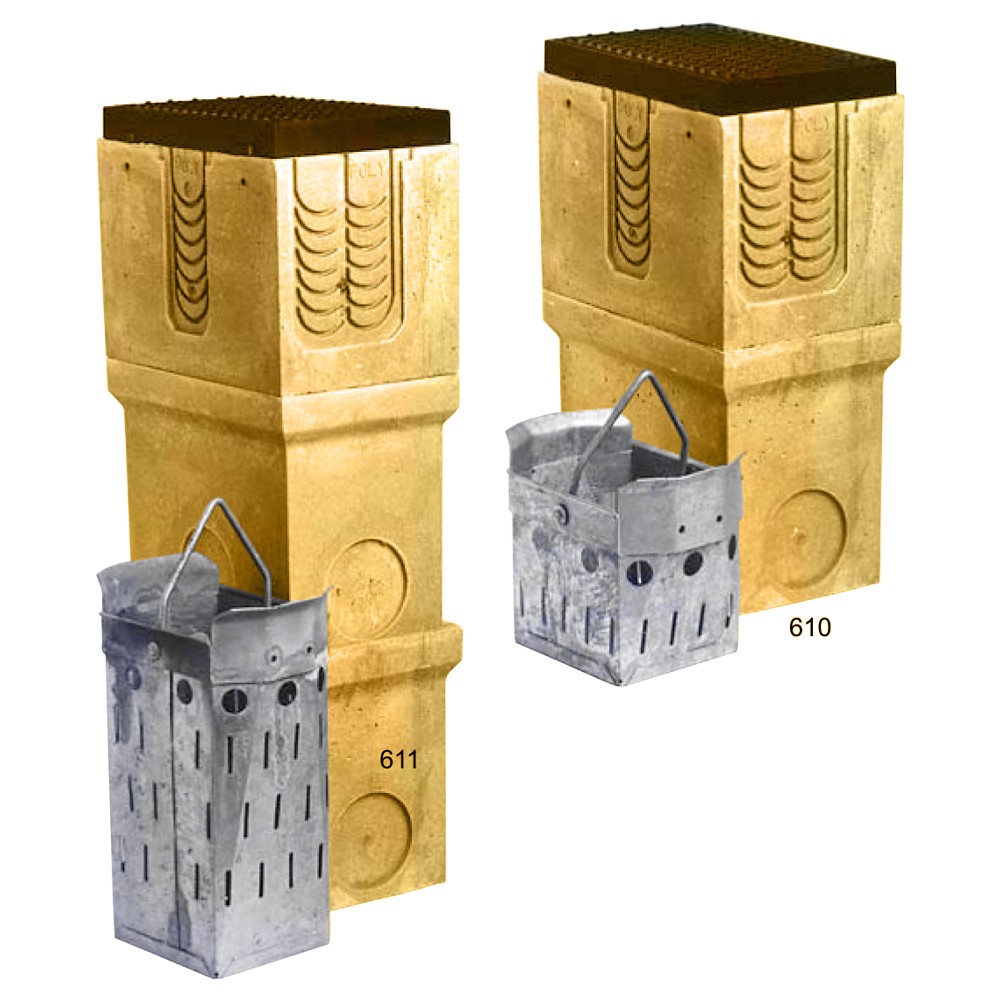

PolyDrain’s 2610 and 2611 Large Catch Basins are designed to accept large volumes of fluids. Removable stainless or galvanized steel trash buckets are available and a cast iron grate and frame is included. Catch basins are 19.6” long and 12.8” wide and have pre-formed cutouts for insertion of channels and 6 in. (150 mm) outlets on all four sides of the basin, although other pipe sizes can be fitted to the catch basin as required. PolyDrain Large Catch Basins have a stackable design which allows for installation to any required depth.
PolyDrain’s 2900 Series Catch Basins have the same outside dimensions as standard PolyDrain channels. Designed to accept sidewall extensions, they can be positioned any place in a channel run. The 2900 Series Catch Basins are available with easy-to-remove stainless or galvanized steel trash buckets and can accept the full range of lockable inlay or frame-and-grate systems. Available with foul air traps when required.
|Large Catch Basin||Large Catch Basin 2610 PDF||2610|
|Large Catch Basin||Large Catch Basin 2611 PDF||2611|
|Small Catch Basin||Small Catch Basin 2900 PDF||2900|
|Small Catch Basin||Small Catch Basin 2901 PDF||2901|
