PolyDrain Locking Devices
Grate locking devices are recommended for all applications involving vehicular traffic, or where vandalism may be a problem. Locking devices are provided in zinc-plated, stainless steel and brass. The bolt is threaded into the lock toggle through the hole provided in the grate prior to grate installation. As the bolt is tightened, the toggle cams into place for hands-free installation.

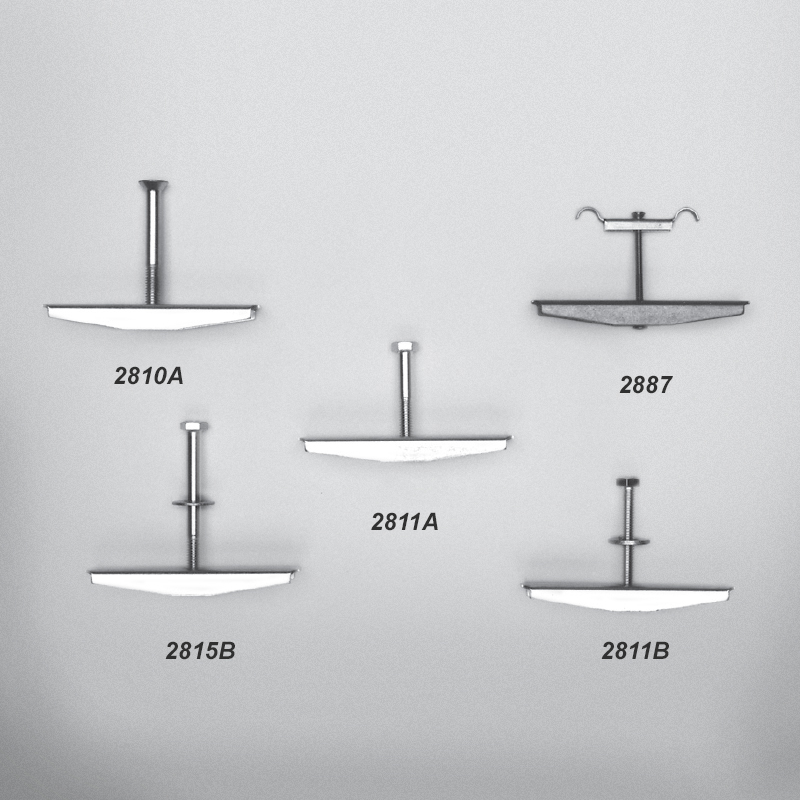

|2810A||2810A ABT Flathead Socket Cap Bolt and Lock Toggle||Flathead Socket Cap Bolt and Lock Toggle – fits 404, 405, 406, 407, 410, 411, 412|
|2811A||2811A ABT Locking Asembly w/ Hex Head Cap Bolt & Lock Toggle||2811B/ 2810A Locking Device|
|2811B||2811B ABT Locking Asembly w/ Hex Head Cap Bolt & Lock Toggle||2811B/ 2810A Locking Device|
|2815B||2815B ABT Locking Assembly w/ Hex Head Cap Bolt, 5/16″ Washer & Lock Toggle||2815B Locking Device|
|S2810A||Locking Assembly w/ Flat Head Bolt & Toggle for S2410||S2810A Locking Device|
Download PolyDrain Catalog for More Information
