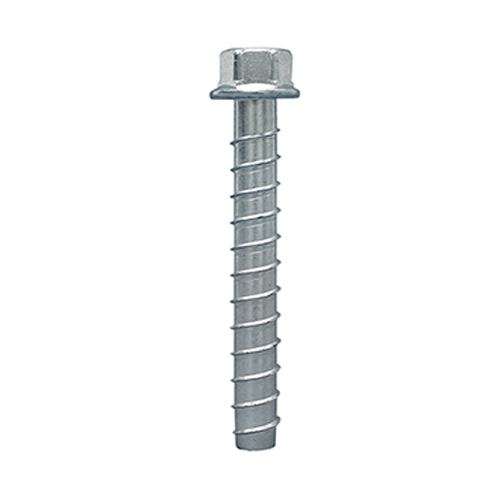

Titen HD

Heavy Duty Screw Anchor for Cracked and Uncracked Concrete

The Titen HD® anchor is a patented, high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete, a requirement that the IBC places on post-installed anchors for use in seismic applications. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent application in dry, interior, non-corrosive environments or temporary outdoor applications.

Click For Details

Product Description

  • Now offering 1/4″ diameter for cracked and uncracked concrete
  • Code-listed under the current IBC/IRC in accordance with AC193 for cracked concrete applications per ICC-ES ESR-2713
  • Code-listed under the current IBC/IRC in accordance with AC106 for masonry applications per ICC-ES ESR-1056
  • Thread design undercuts to efficiently transfer the load to the base material
  • Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility that helps prevent breakage
  • No special drill bit needed: Designed to install using standard sized ANSI tolerance drill bits
  • Installs with 50% less torque: Testing shows that when compared to competitors, the Titen HD requires 50% less torque to be installed in concrete.
  • Hex-washer head: Requires no separate washer and provides a clean installed appearance.*
  • Removable: Ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved. Re-use of the anchor to achieve listed load values is not recommended.
