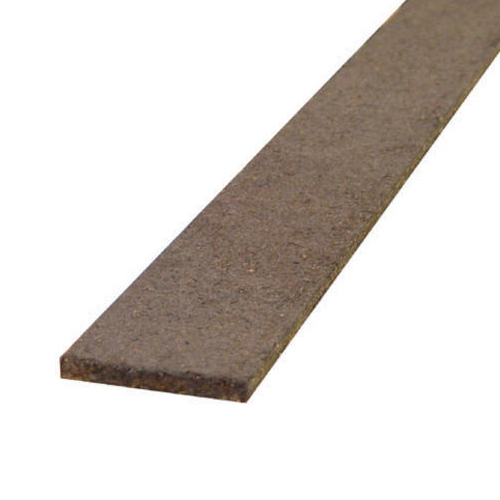

Fibre Expansion Joint

$0.00

Fibre expansion joint is composed of cellular fibers securely bonded together and uniformly saturated with asphalt to assure longevity. Wherever a cost-effective joint filler is required, Fibre expansion joint meets the need.

USES
FIBRE EXPANSION JOINT is ideal for use on highways, streets, airport runways, sidewalks, driveways, flatwork, and scores of commercial and industrial applications subject to pedestrian and vehicular traffic.

FEATURES/BENEFITS

  • Provides the ideal product for the majority of all expansion/contraction joint requirements.
  • Non-extruding … versatile … offers a minimum 70% recovery after compression.
  • This tough, lightweight, easy-to-use, semi-rigid joint filler is available in strips and shapes fabricated to your requirements.
  • Easy to cut … dimensionally stable … not sticky in summer or brittle in winter.
  • Provides neat, finished joints requiring no trimming.
  • Often copied … but never equaled.
  • Remains the standard of the industry today … with over 80 years of proven and satisfactory performance.
  • Can be punched for dowel bars and laminated to thicknesses greater than 1″ (25.4 mm).
Clear selection
SKU: N/A Category: Brands: .

Description

APPLICATION

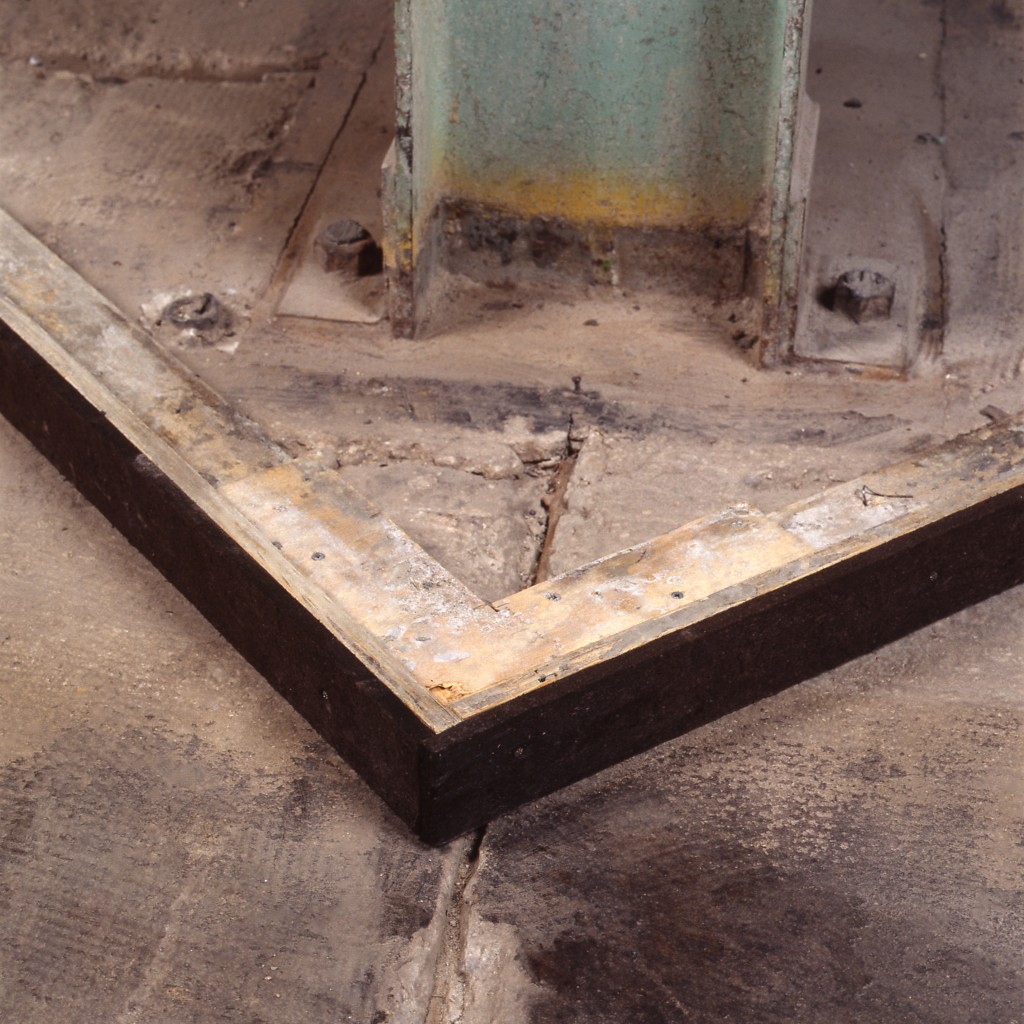

FIBRE EXPANSION JOINT is positioned against the forms, at interrupting objects or columns, and against abutting structures prior to the placement of concrete. FIBRE EXPANSION JOINT should be installed 1/2″ (12.7 mm) below the concrete surface to accept the joint sealant. Before sealing, slide SNAP-CAP® from W. R. MEADOWS over the top of the expansion joint. Place the concrete and screed to finish grade, as usual. When concrete is cured, insert a screwdriver through the top of SNAP-CAP, pull free and discard. For maximum protection from water infiltration and weathering, and to assure proper function, seal the joint with DECK-O-SEAL®, POURTHANE® NS, or POURTHANE SL from W. R. MEADOWS. SOF-SEAL® or any hot-applied sealant, such as HI-SPEC®, can also be used to protect the joint; however, SNAP-CAP is not necessary in this type of application. Simply pour the product over FIBRE EXPANSION JOINT.

LEED INFORMATION
May help contribute to LEED credits:

  • IEQ Credit 4.4: Low-Emitting Materials – Composite Wood and Agrifiber Products
  • MR Credit 2: Construction Waste Management
  • MR Credit 4: Recycled Content
  • MR Credit 5: Regional Materials
