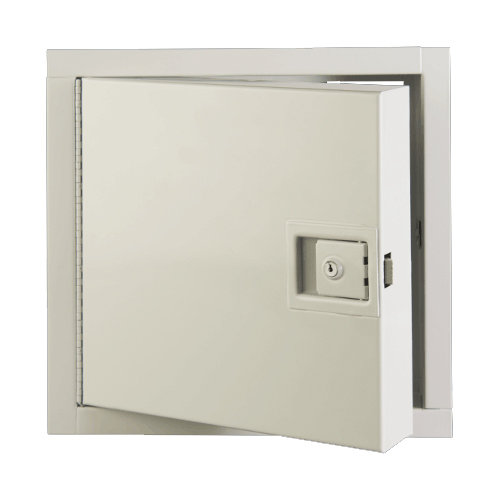

KRP-150FR Fire Rated Access Door

The KRP-150FR is flush mounted and has mounting holes to facilitate installation. The KRP-150FR is insulated and rated by Underwriters Laboratories for 1.5 hour “B” label in walls and by Warnock Hersey for 3 hours in ceilings.

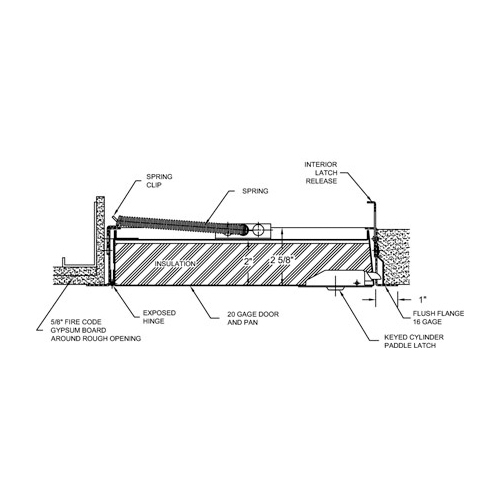

Specifications:

  • For Walls and Ceilings (Max. 36X24 for Ceilings)
  • For all surfaces
  • Frame: 16 gauge steel and 1 inch wide.
  • Door: 20 gauge steel, welded pan type filled with 2″ thick fire-rated insulation and opens to 175°. The door is self-latching with automatic closer and interior latch release.
  • Latch: Locking Paddle Handle with key
  • Hinge: Continuous piano hinge.
  • Finish: Prime coat of rust inhibitive electrostatic powder, baked white enamel.

Installation Instructions

Spec Sheet
