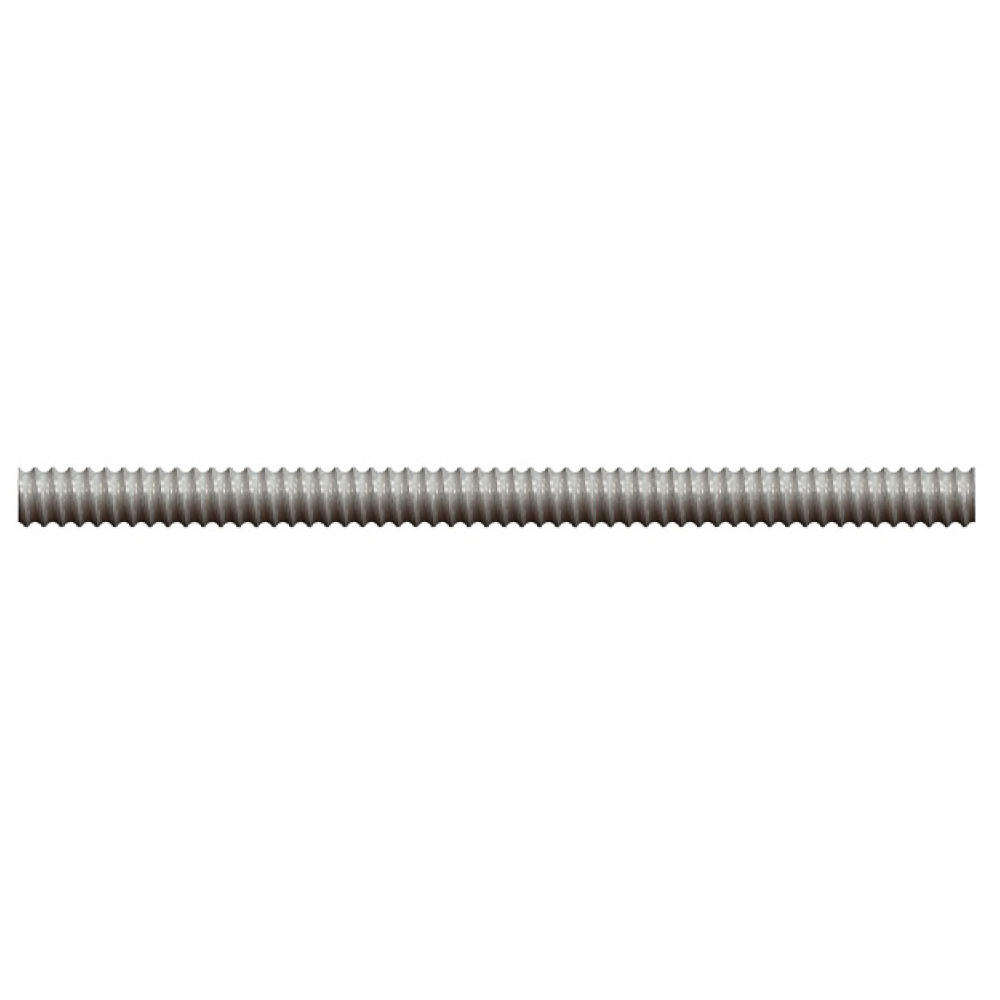

B12 Coil Rods

Dayton Superior B12 Continuous Coil Threaded Rod is manufactured from high strength cold rolled steel.

Applications

B12 is capable of servicing many applications and uses in the field. It can be used as form ties, combination ties with coil ties for concrete embedments, and for bridge hangers to bridge overhang bracket attachments

Features

• Available in 1/2″ to 1-1/2″ diameters
• Available in 12′ length
• Field cutting can be accomplished with bolt cutters or carborundum blades
• B12 requires one B25 or two B13 nuts to develop ultimate load
• 1/2″ dia.: Gr. 1035/1038/1045 MHC Steel
• 5/8″ & 3/4″ dia.: Gr. 1035/1045
• 7/8″, 1-1/4″ & 1-1/2″ dia.: Gr. 1045
• 1″ & 1-1/8″ dia.: Gr. 10V45

Download B12 Coil Rod Technical Data Sheet
