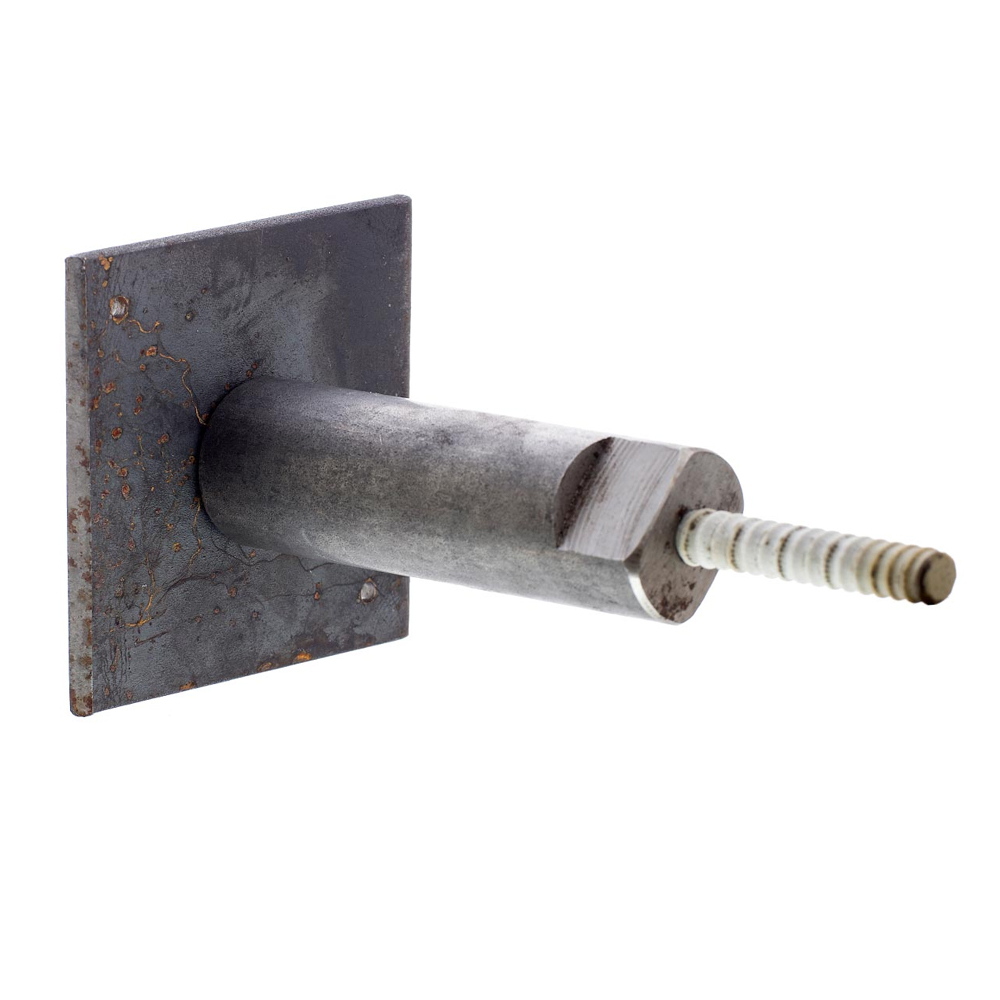

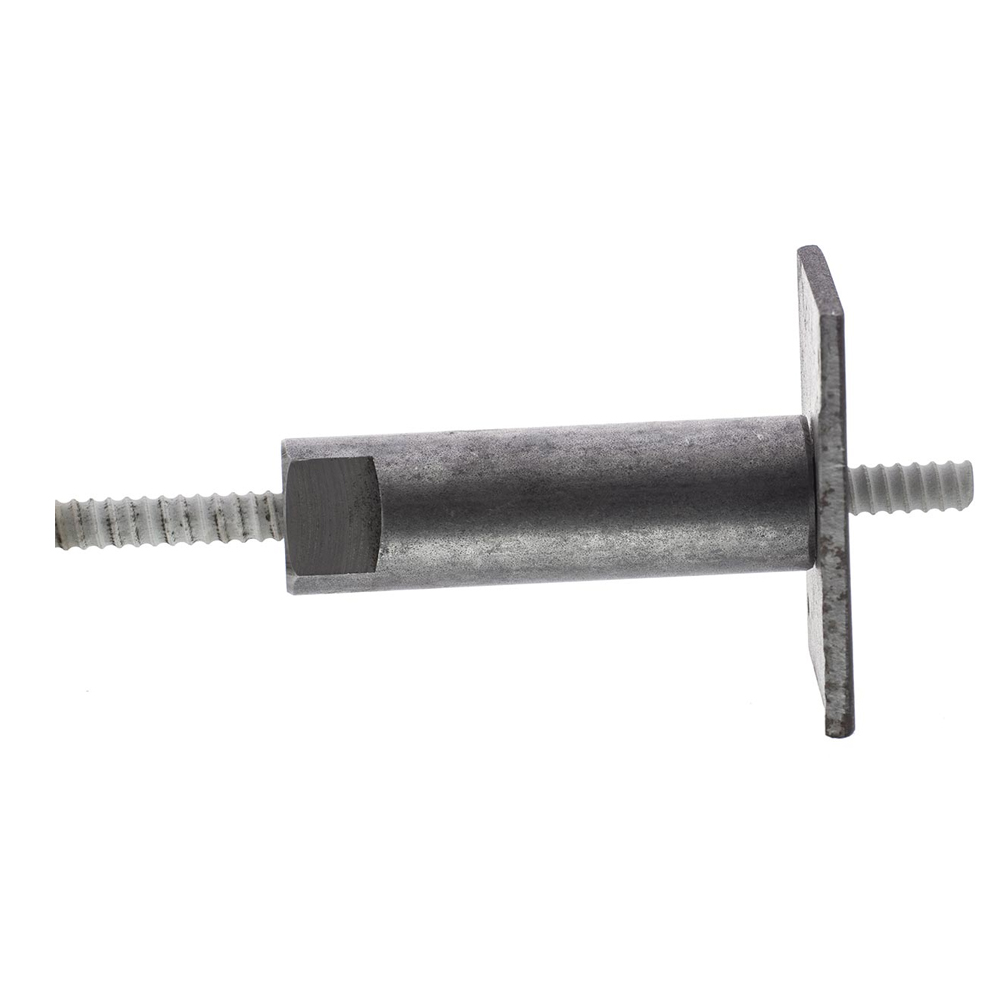

SuperTie™ Coil Rod Form Fixture 1/2” offers an ultimate tensile strength of 15,000 pounds (7,500 pounds safe working load at 2:1 safety factor) and is most commonly used with the job-built (plywood and 2×4) forms and hand-set modular forms. The fiberglass rod diameter is 1/2” inch, making the system compatible with most commercial forming systems.
| PRODUCT # | DESCRIPTION | PACKAGING | SHIP WT |
|---|---|---|---|
| CR0500 | 1/2″ dia. FRP Coil Rod 15,000 lb. ultimate strength 8 ft. lengths, gray color. |
As Ordered | 1.5 lbs per 8 ft. |
| CRFF0500 | Form Fixture | As Ordered | 1.5 lbs per each |
| BP615 | Bearing Plate | As Ordered | 1.1 lbs per each |
