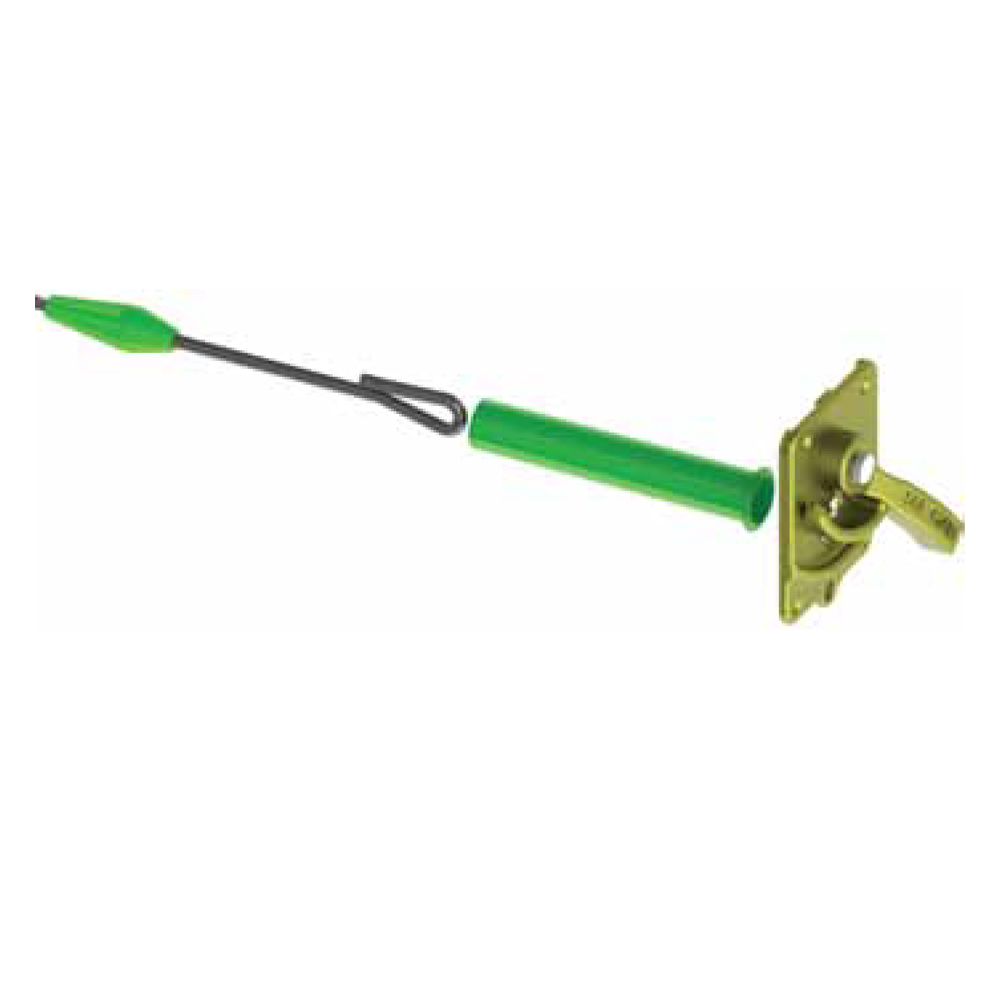

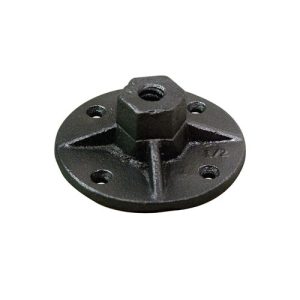

Gates #5 Anchor lock

Gates’ Mid Weight Gang System

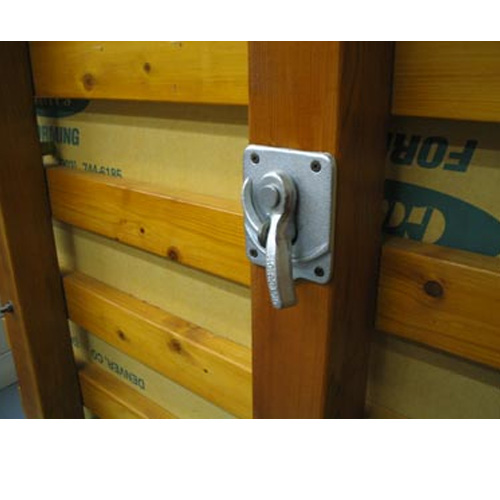

  • Form Weight—approx 7#/sf (typical design) • #5 Anchor Locks are attached to the form and lock the pass-thru ties with a 1 1⁄2” breakback

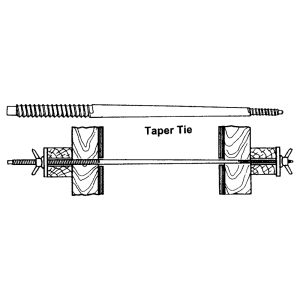

  • Can utilize taper ties or threaded 3⁄8” inner ties
  • Plastic Tie Hole Sleeves are easy to build into the forms and fit closely around the cone preventing excessive grout loss
  • Attached hardware and loop end ties hold forms apart while setting and yield a precise wall thickness—no internal spreader needed


#5 Anchor Lock Forming System

Gates Commercial Forming Systems Brochure
