A27 turnbuckle form aligner

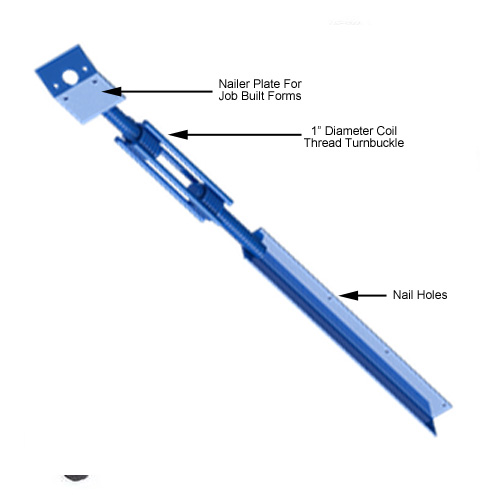

Dayton Superior A27 Turnbuckle Form Aligners are designed to accurately position and plumb vertical forms.

The turnbuckle section of the aligner features a 1″ diameter self-cleaning coil thread for fast adjustments. Overall length of the aligner is 37″ minimum and 40″ maximum, offering 3″ of effective adjustment. The Dayton Superior A27 Turnbuckle Form Aligner has a bent nailing plate equipped with nail holes and a 15/16″ hole to accept 3/4″ or 7/8″ steel stakes. The A27 Aligner is a rugged unit that offers high reuse and labor savings. The safe working load of the aligners is limited by the lumber, nailing and/or staking methods.

Download Tech Data
