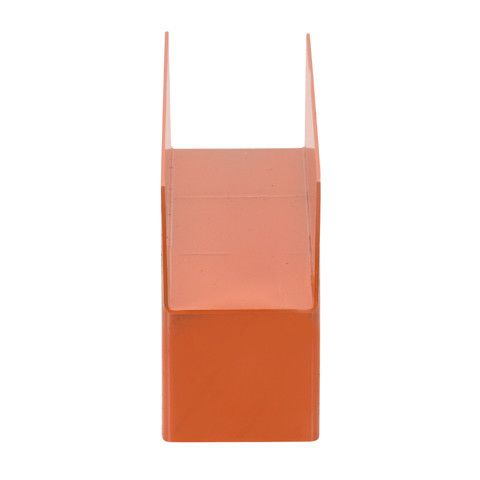

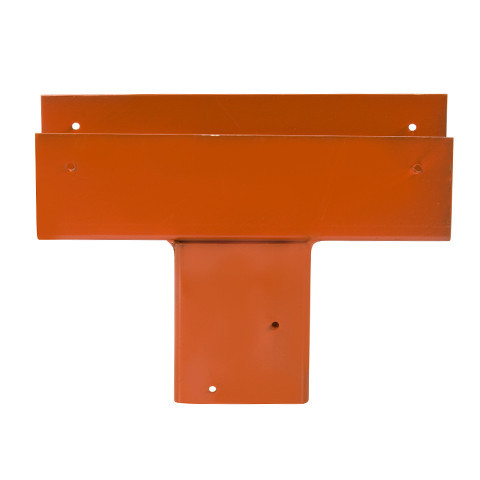

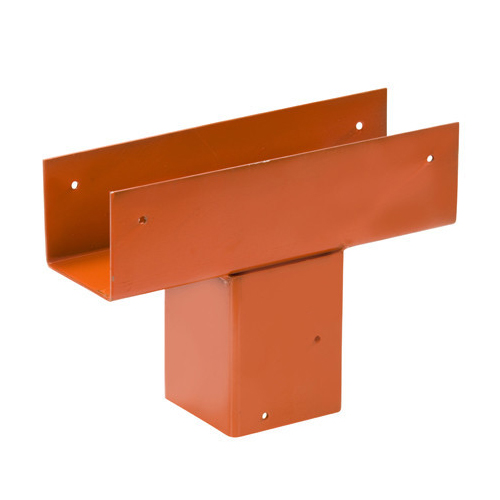

Ellis T-Head

This product is made to fit 4×4 Ellis Shores only. 4×4’s or 4×6’s can be used for T member.

The Ellis T-Head makes this economy possible. Attached to the top of an upper shore member, the T-Head is used either (1) to splice purlins / stringers, or (2) joined to a 3’ or 4’ 4×4 at the center to make a tee-shore.

MATERIAL: 11 Gauge, 4” square tubing welded to 3/16” flat stock (formed)
SIZE: 4”x4”x5” tubing; channel 12” long to fit 4×4 or 4×6.
