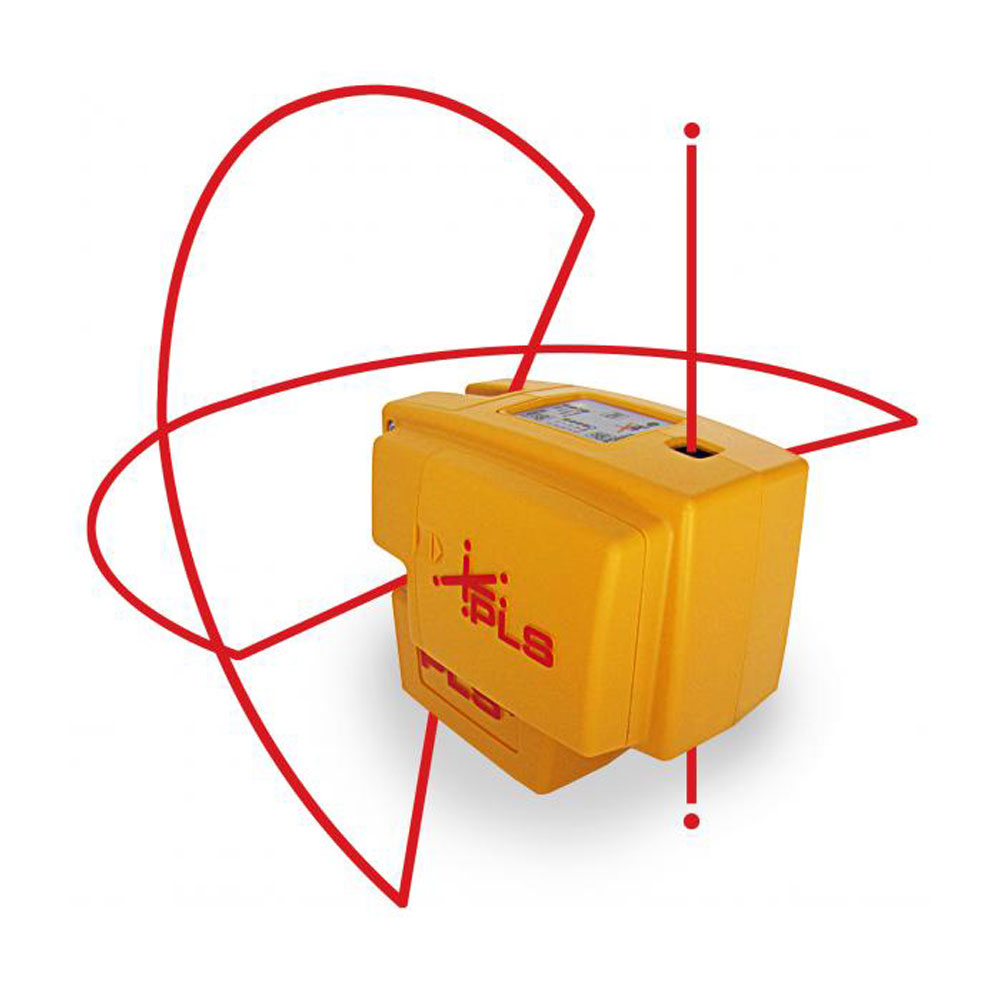

PLS 4 Tool

This hybrid combination of horizontal-vertical lines and plumb points will speed layout

and installation for commercial electricians, HVAC-mechanical, staging and glazing contractors.

Specifications:

• Cross Line Accuracy: +/-1/8” @ 30 feet (+/-3mm @ 10 meters)
• Point-to-Point Accuracy:  +/-1/4” @ 100 feet (+/-6mm @ 30 meters)
• Working Range: +/-100 feet (outdoor w/detector)
• Weight: 16 oz. (.45kg) (including batteries)
• Power Supply: 3AA batteries alkaline or rechargeable
• Dimensions: 2”x 2.5”x 4-3/8”
• Leveling Range: +/-6 Degrees
• Operating Time: +25 hours continuous use with single beam; 12.5 hours both beams
