SuperTie™ RockGrip 6K & 15K Systems

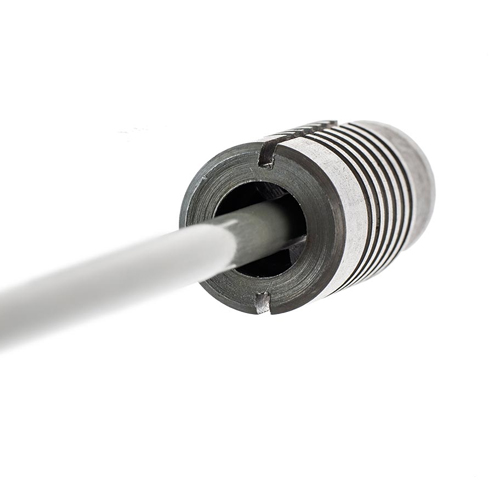

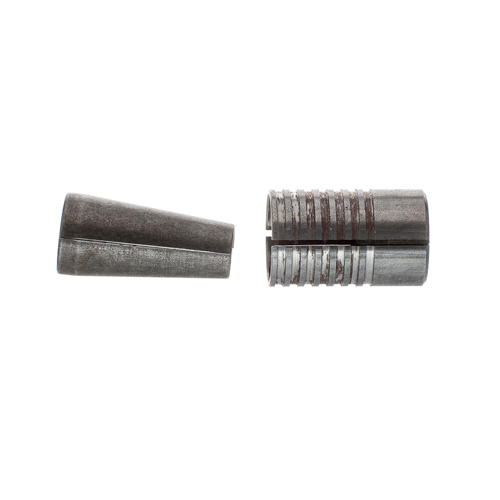

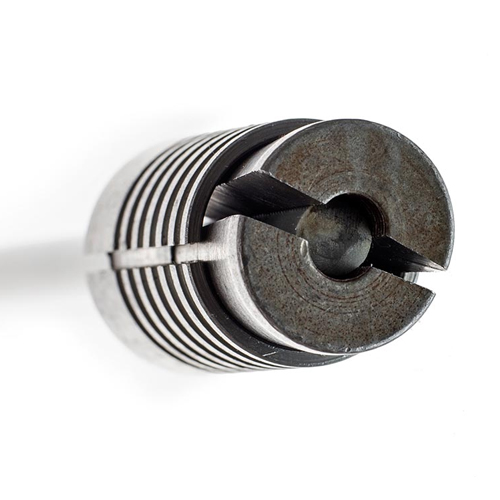

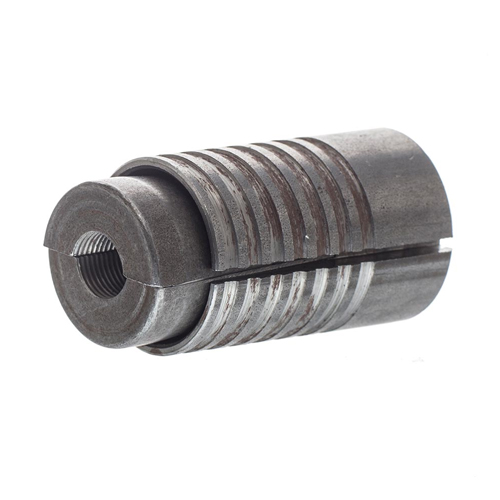

RockGrip™ is our anchoring device for the smooth SuperTie™ rod in single-forming applications for 6K and 15K systems. It is mechanical in nature and must be set by the “RockGrip Setting Tool,” which can be driven by hand or under power with any roto-hammer. RockGrip is easy to use, eliminates epoxy cure time, is less expensive than alternatives, requires less anchor depth, and eliminates plugging and patching.

 Benefits of RockGrip:

  • Easy to use
  • No waiting for epoxy to cure
  • Less expensive than alternative systems
  • Requires less anchor depth
  • Eliminates plugging and patching

Non-Corrosive Fiberglass Smooth Rod (.308” & 0.50”)

RJD Fiberglass Smooth Rod, utilizes a specially blended and formulated custom engineered resin, made in the USA, combining ultimate tensile strength and maximizing the RJD Gripper strength. Do not use any non RJD engineered Rod with RJD grippers which could result in form failure and/or injury. RJD Fiberglass Smooth Rod will never rust, eliminating the need for breakback, plugging and patching allowing for superior architectural finishes. RJD Fiberglass Smooth Rod 6K System (.308”) is offered in grey, tan, white, black and brown. RJD Fiberglass Smooth Rod 15K System (0.50”) is offered in grey and black.

Download

Installation Guide

Tech Data

Product Description

PRODUCT # DESCRIPTION PACKAGING SHIP WT
RG6000 RockGrip 50 per box 23 lbs.
RGMST6 RockGrip Setting Tool (manual) 1 per box 6 lbs.
RG15000 RockGrip 50 per box 38 lbs.
RGMST15 RockGrip Setting Tool (manual) 1 per box 8 lbs.
RGPST RockGrip Setting Tool (with Roto-Hammer)
RGPST-Part-A Part A: Driven End 1 each 1 lbs.
RGPST-Part-B Part B: 6k Driver 1 each 3 lbs.
RGPST-Part-C Part B: 15k Driver 1 each 2 lbs.
RGPST-Part-D1 Part D1: 18″ Extension 1 each 3 lbs.
RGPST-Part-D2 Part D2: 24″ Extension 1 each 5 lbs.
