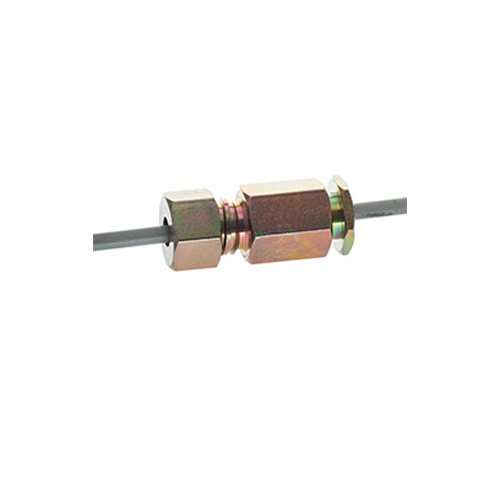

SuperTie™ 6K (.308” Rod) GND6000

SuperTie™ 6K Patented Gripper System offers an ultimate tensile strength of 6,000 pounds (3,000 pounds safe working load at 2:1 safety factor) and is most commonly used with the job-built (plywood and 2×4) forms and hand-set modular forms. The fiberglass rod diameter is only .308 inches, making the system compatible with most commercial forming systems.

SuperTie™ Bearing Plate BP615

The bearing plate is a required component with the SuperTie Gripper. BP615 is a 4”x4” steel plate and fits the 6K and 15K systems. G50K comes with customized bearing (call for details).

Install Guide

Product Description

PRODUCT # DESCRIPTION PACKAGING SHIP WT
R6/12G .308″ dia. Rod 6000 lb. ultimate strength.
12 ft. lengths, gray color.
50 per bundle
(total 600 feet)
41 lbs.
R6/20G .308″ dia. Rod 6000 lb. ultimate strength.
20 ft. lengths, gray color.
50 per bundle
(total 1000 feet)
68 lbs.
GND6000 Gripper 100 per bucket 76 lbs.
BP615 Bearing Plate 50 per box 55 lbs.
SC6000 SpreaderClip 1000 per box 5 lbs.
WS6000 WaterStop 1000 per box 11 lbs.
