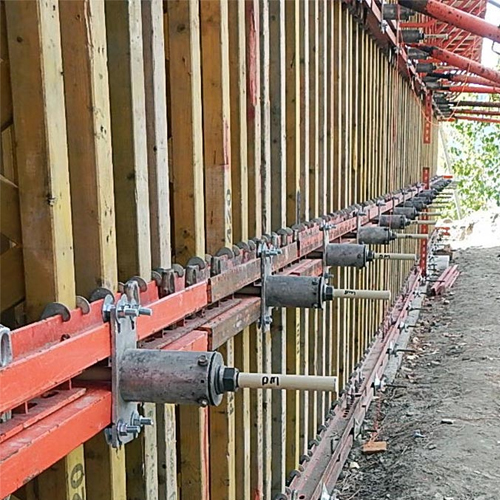

SuperTie™ 50K Patented Gripper System is the fiberglass form tie system for heavy large crane set gang forms. It is compatible with commercial-grade steel, aluminum, and heavy-wooden-beam, job-built forms. It provides 50,000 pounds ultimate tensile strength and requires less staging and manpower.
Superior Finishes
Superior architectural finishes, without patches or rust.
No Corrosion
The fiberglass form tie material cannot rust, eliminating the need to have a breakback, and subsequent plugging and patching to forestall rust.
Watertight
Certified testing and actual experience show the cast- in- place form tie material to be watertight to up to 480’ H2O (208 psig).
Natural Insulator
The form tie material is electromagnetically transparent, is an electrical insulator, will not promulgate radio frequency energy, and shields nuclear energy.
| PRODUCT # | DESCRIPTION | PACKAGING | SHIP WT |
|---|---|---|---|
| R50/20G | 1.0″ dia. Rod, 20 ft. lengths, gray | 7 per bundle | 88 lbs. |

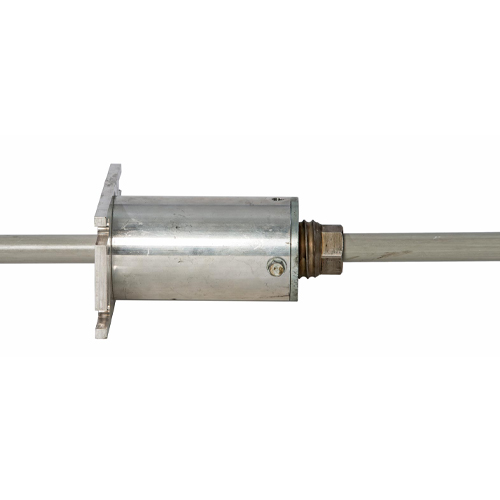

| G50K | Gripper with Plate | (varies) | 11 lbs/ea |
| SH505 | Shim (for battered walls) | 25 per box | 25 lbs. |
| JD50K | Jacking Device | 1 per box | 12 lbs. |
| WS50K | WaterStop Washer | 100 per box | 3 lbs. |
| GripperService | Maintenance of Grippers | each | n/a |
| GMK50K | Gripper Maintenance Kit | 1 each | 5 lbs. |
