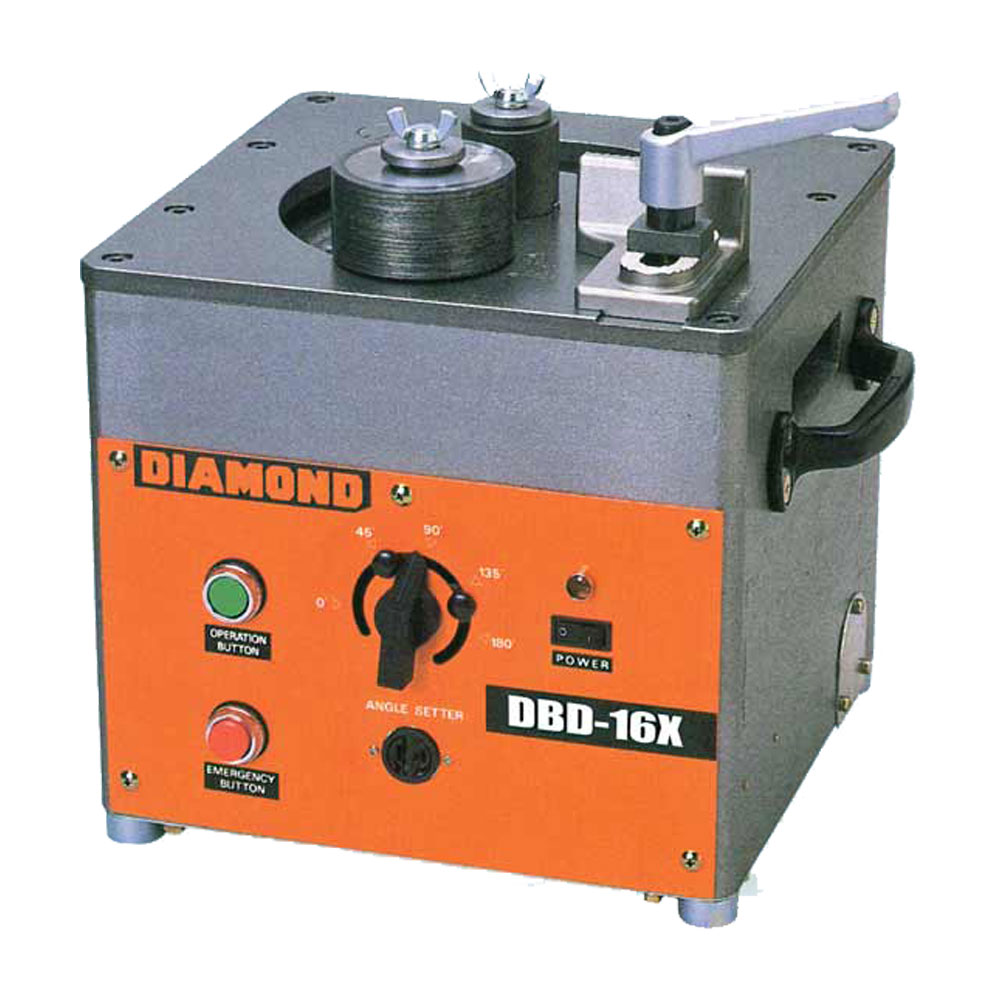

The DBD-16X heavy-duty portable rebar bender helps save valuable man-hours by bending rebar up to #5 (5/8”) grade 60 at the job site or in your shop. This strong electrical-mechanical bender has two preset angle locks for repeating the same angle bend. The dial-type angle selector can be set to accurately bend any angle from 0-180 degrees. Bends (3) each #3 rebar or (2) each #4 rebar or (1) each #5 rebar at one time. An emergency stop switch and two side lifting handles are standard features. Ships complete with set of (6) bending rollers in a steel carrying case, a tool kit, and a standard foot pedal control switch for hands-free bending.


  • Capacity: 5/8″ grade 60
  • Speed: 5 seconds
  • Bending Angle: 0-180 deg.
  • Voltage: 115 V 50/60Hz
  • Amperage: 10 amps
  • Weight (kg): 90 lbs. (40.8)
  • Dimensions (in.): 12.5 x 16.6 x 16.2
  • L x W x H (mm): 320 x 425 x 415

Rebar benders are shipped complete with a set of bending rollers and a foot pedal.

Optional DBD Series bender stands, combination cutter/bender stands and workstation are available upon request.
