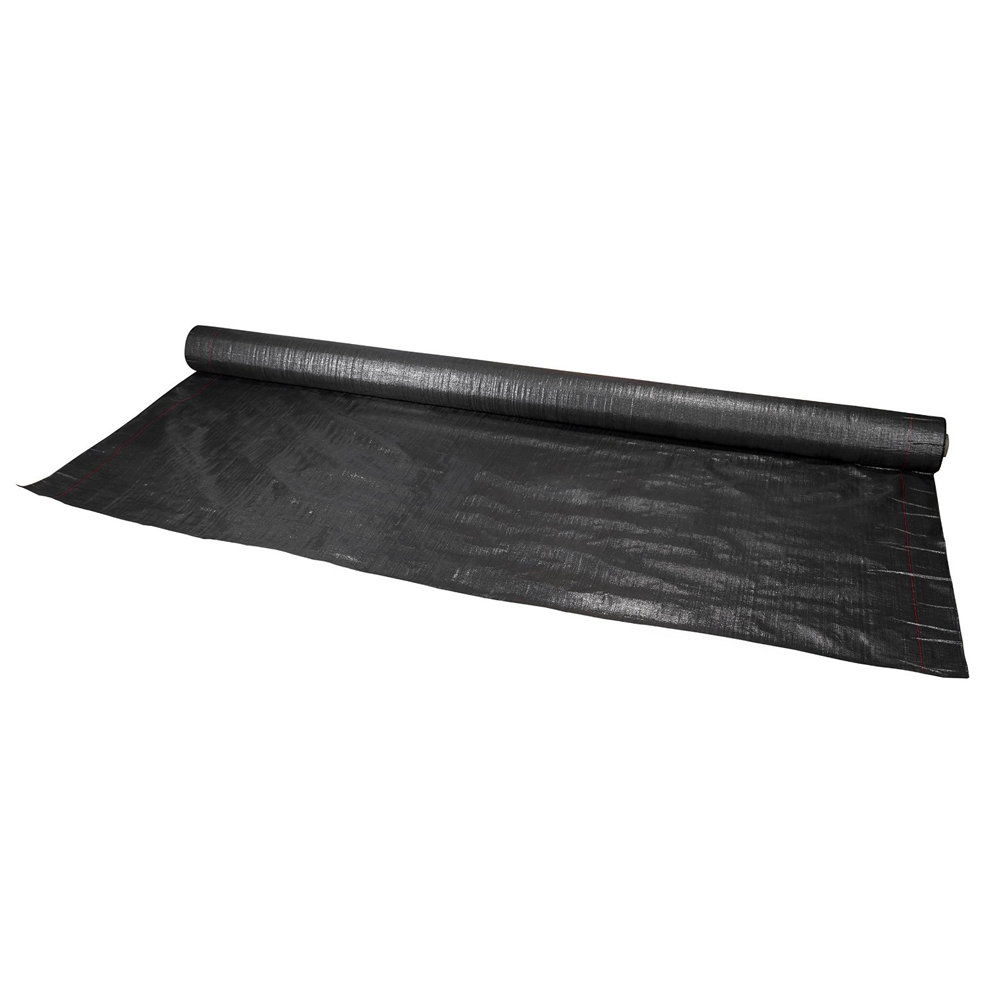

Woven Stabilization Fabric



Mutual’s wovens are available in cut rolls in the following sizes:

WF200: 12-1/2’ x 432’, 15’ x 360’, 17-1/2’ x 309’, 30” x 300’, 36” x 300’, 42” x 300’ and 72” x 300’

WF315: 12-1/2’ x 360’

GC125: 3’ x 300’, 4’ x 300’, 6’ x 300’, 12’ x 300’

Download Geotextile Product Brochure

Product Description

MUTUAL WOVENS
USES GC125 WF200 WF315
Ground Cover x Woven geotextiles are used to hold soil in place. They can also be used under Rip Rap, Gabions or precast block. Woven geotextiles area time and money saving alternative to traditional methods using graded aggregate or sand filters.
Seperation x x To prolong surface life and stabilize the foundation.
Stabilization x x Woven geotextiles provide a rugged separation layer between aggregate and subgrade.



Mutual Woven Specifications GC125 Ground Cover WF200 WOVEN GEOTEXTILE WF315 WOVEN GEOTEXTILE
Grab Tensile Strength ASTM D-4632 125 lbs. 200 lbs 315 lbs
Grab Elongation ASTM D-4632 15% 15% 15%
Trapezoid Tear ASTM D-4533 70 lbs. 70 lbs. 120 lbs.
Puncture ASTM D-4833 68 lbs. 100 lbs. 120 lbs.
Mullen Burst ASTM D-3786 291 PSI 400 PSI 600 PSI
Permitivity ASTM D-4491 .07 SEC .07 SEC .05 SEC
Permeability ASTM D-4491 .005 CM/SEC .005 CM/SEC
A.O.S. ASTM D-4751 40 US Sieve 40 US Sieve 40 US Sieve
Water Flow ASTM D-4491 4.0 gpm/ft2
U.V. Resistance (500 hr) ASTM D-4355 90% 90% 90%
