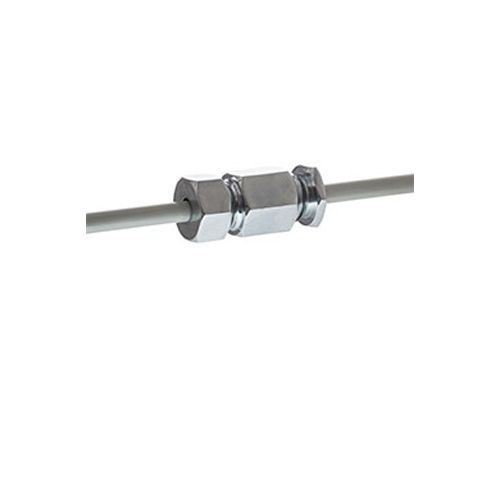

SuperTie™ 15K (.5” Rod) GND15000

SuperTie™ 15K Patented Gripper System offers an ultimate tensile strength of 15,000 pounds (7,500 safe working load at 2:1 safety factor). This system’s greater strength makes it attractive to those who need heavier forms and higher concrete placement rates. The .500-inch-diameter rod can be used with many commercially available forms.

SuperTie™ Bearing Plate BP615

The bearing plate is a required component with the SuperTie Gripper. BP615 is a 4”x4” steel plate and fits the 6K and 15K systems. G50K comes with customized bearing (call for details).

Download

Installation Guide

Add to quote
Categories: , Tag: Brands: .

Description

PRODUCT # DESCRIPTION PACKAGING SHIP WT
R15/20G .500″ dia. Rod, 20 ft. lengths, grey color. 18 per bundle (total 360 feet) 68 lbs.
GND15000 Gripper 50 per bucket 62 lbs.
BP615 Bearing Plate 50 per box 55 lbs.
SC15000 SpreaderClip 500 per box 12 lbs.
WS15000 WaterStop 1000 per box 8 lbs.
DG15000 DoubleGrip 25 per box. 45 lbs.

Always use 2:1 safety factor when Engineering tie spacings, refer to ACI suggested tie spacing noted in the SuperTie Installation Guide

SuperTie Systems are sold exclusively through quality construction materials dealers. Call for the name of the dealer nearest you.
